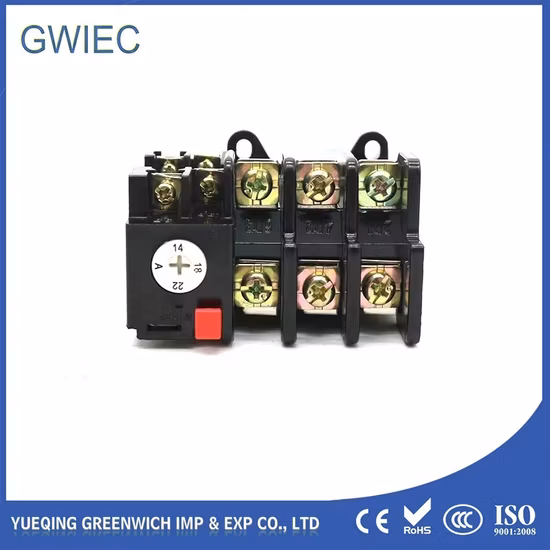

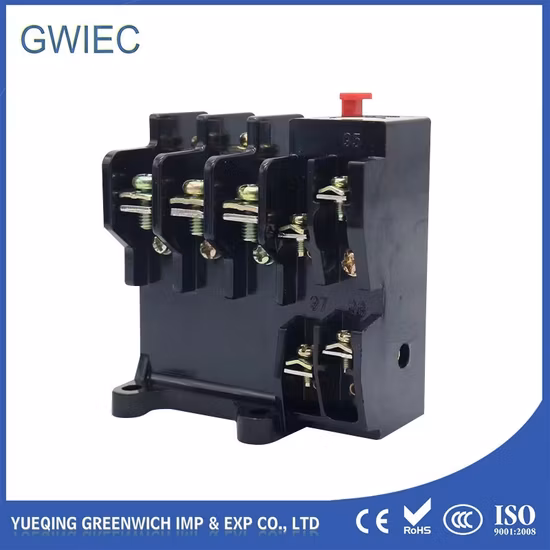

High Quality 28-45 0.68-1.1 Protection Electrical Overload Protector Thermal Relay
JR36 series thermal overload relay is suitable for AC 50Hz/60Hz, voltage to 690V, current to 0.25-160A for long-term wor
Send your inquiryDESCRIPTION
Basic Info
Model NO. | JR36-20 |
Product Name | Thermal Overload Relay |
Current Range | 0.25-160 |
Sliver Contact | Sliver |
Price | Negotiable |
Company Feature | Factory |
Certiifications | CE/ISO9001 |
Delivery Time | Within 1000PCS for 15days |
OEM | Available |
Transport Package | Carton |
Trademark | OEM |
Origin | China |
HS Code | 85363000 |
Product Description
JR36 series thermal overload relay is suitable for AC 50Hz/60Hz, voltage to 690V, current to 0.25-160A for long-term work or intermittent long-term AC motor overload and open-phase protection. The thermal relay has phase-failure protection, temperature compensation, automatic and manual reset, and reliable action. JR36 thermal relay adopts fixed installation, wire access, and is also known as universal thermal overload relay.
This product complies with: GB14048.4, IEC60947-4-1 and other standards.
The thermal relay can only be installed independently. This product and CJT1 contactor form a QC36 electromagnetic starter.
Type | JR36-20 | JR36-32 | JR36-63 | JR36-160 |
Setting Range(A) | 0.25~0.35 | 10~16 | 14~22 | 40~63 |
0.32~0.5 | 14~22 | 20~32 | 53~85 | |
0.45~0.72 | 20~32 | 28~45 | 75~120 | |
0.68~1.1 | 40~63 | 100~160 | ||
1~1.6 | ||||
1.5~2.4 | ||||
2.2~3.5 | ||||
3.2~5 | ||||
4.5~7.2 | ||||
6.8~11 | ||||
10~16 | ||||
14~22 |
