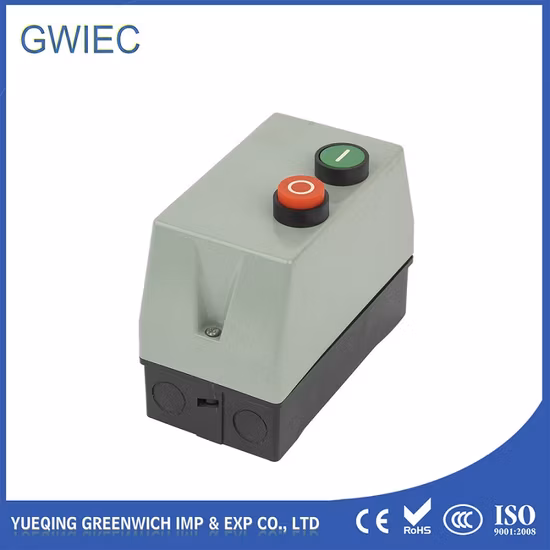

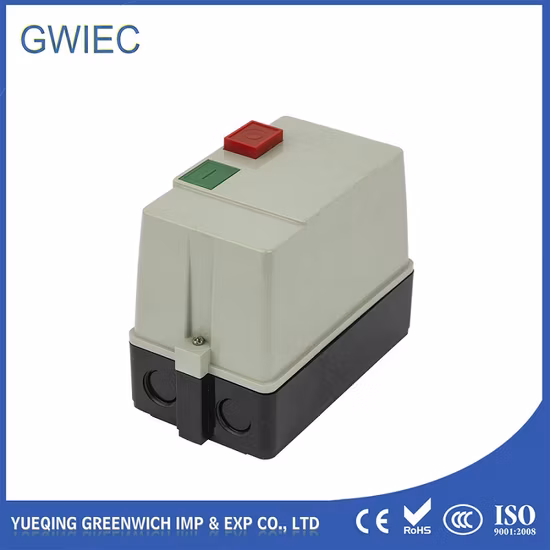

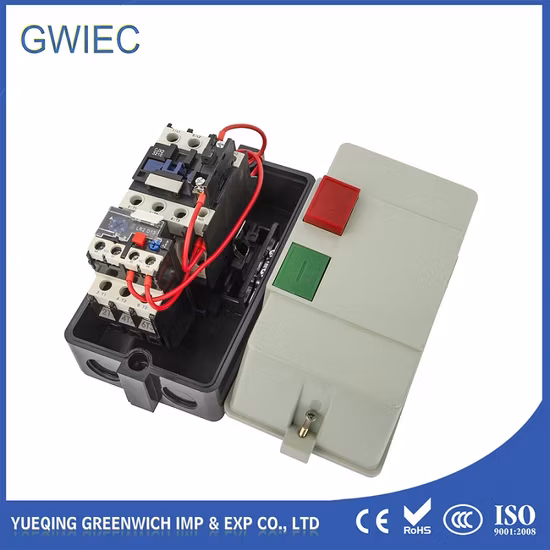

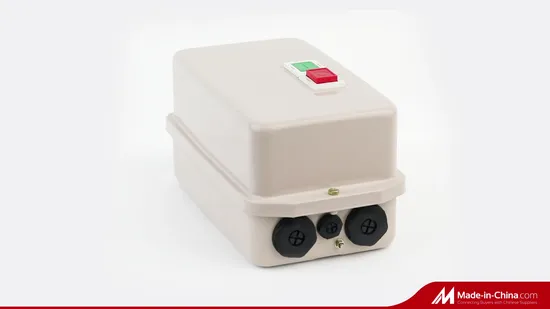

Good Price 22kw 12A Three Phase Magnetic Motor Dol Starter
Application 1.LE-D Series magnetic starter is mainly applied to circuit of AC 50 or Hz.voltage 550V for far distance mak
Send your inquiryDESCRIPTION
Basic Info
Model NO. | LE1-D09 |
Product Name | Dol Starter |
Certification | CCC, ISO: 9001, CE |
Rated Voltage | up to 550V |
Rated Current | 9-95A |
Type of Enclosure | IP42 / IP65 / IP55 |
OEM | Available |
Standard | CE/IEC947-4-1 |
Trademark | GWIEC |
Origin | Zhejiang, China |
HS Code | 8411991090 |
Product Description
Application
1.LE-D Series magnetic starter is mainly applied to circuit of AC 50 or Hz.voltage 550V for far distance making and breaking circuit and frequently starting and controlling motor
2.It has the features small volume,light weight,low power consumption,high efficiency safe and reliable performance
3.It complies to IEC947-4-1
Specification
Type | RatedCurrent(A) | Maximum Power AC3 duty (KW) | Type ofenclosure | SuitableThermal Relay(A) | |||||
220V230V | 380V400V | 415V | 440V | 500V | 660V690V | ||||
LE-D09 | 9 | 2.2 | 4 | 4 | 4 | 5.5 | 5.5 | IP42 | LR2 D1312 LR2 D1314 |
LE-D12 | 12 | 3 | 5.5 | 5.5 | 5.5 | 7.5 | 7.5 | LR2 D1316 | |
LE-D18 | 18 | 4 | 7.5 | 9 | 9 | 10 | 10 | LR2 D1321 | |
LE-D25 | 25 | 5.5 | 11 | 11 | 11 | 15 | 15 | LR2 D1322 LR2 D2353 | |
LE-D32 | 32 | 7.5 | 15 | 15 | 15 | 18.5 | 18.5 | IP55 | LR2 D2355 |
LE-D40 | 40 | 11 | 18.5 | 22 | 22 | 22 | 30 | LR2 D3353 LR2 D3355 | |
LE-D50 | 50 | 15 | 22 | 25 | 30 | 30 | 33 | LR2 D3357 LR2 D3359 | |
LE-D65 | 65 | 18.5 | 30 | 37 | 37 | 37 | 37 | LR2 D3361 | |
LE-D80 | 80 | 22 | 37 | 45 | 45 | 55 | 45 | LR2 D3363 LR2 D3365 | |
LE-D95 | 95 | 25 | 45 | 45 | 45 | 55 | 45 | LR2 D3365 |
